Reinforcement Learning in Godot
Introduction
Reinforcement learning (RL) is powerful, but integrating it into game engines isn't straightforward. Most game object AI, examples including path-finders, etc; are simple algorithm based and does not allow much flexibility. This addon as an attempt to integrate reinforcement learning in gamedev with the hopes to fascilitate a rather natural NPC Behaviour.
This addon GDPPO is based on MLPack (a fast C++ ML library) and uses it as a backend for training and inference of the models.
Architecture Overview
High-Level Design
|---------------------------------|
| GDScript Layer |
| (PPO, PPOEnvironment refs) |
|---------------------------------|
|
[GDExtension Bindings]
|
|--------------v------------------|
| C++ Plugin Layer |
| (MLPack wrapper, PPO impl.) |
|---------------------------------|
Key components:
| Component | Responsibility |
|-----------|-----------------|
| PPOEnvironment | GDScript base class; child implements overloads _step(), _reset(), _state(), _get_state_dims(), _get_action_dims() |
| PPO | Godot RefObject wrapping MLPack's PPO algorithm |
| MLPack bindings | C++ layer exposing model architecture, training, inference |
Supported Architecture
- Layers: Linear (fully connected)
- Activations: ReLU, Sigmoid, tanh, Leaky ReLU, softmax, logsoftmax
- Algorithm: PPO (Proximal Policy Optimization)
- Inference: Single-step policy evaluation, batch inference
Building Your First Agent
Step 1: Define the Environment
Extend PPOEnvironment and implement the required methods:
extends PPOEnvironment # Make Sure to extend this RefCounted Object
class_name CartPoleEnv
# Define the Environment Parameters
const GRAVITY := 9.8
const MASS_CART := 1.0
const MASS_POLE := 0.1
const TOTAL_MASS := MASS_CART + MASS_POLE
const POLE_HALF_LENGTH := 0.5
const POLE_MASS_LENGTH := MASS_POLE * POLE_HALF_LENGTH
const FORCE_MAG := 10.0
const TAU := 0.02
const THETA_THRESHOLD := deg_to_rad(12.0)
const X_THRESHOLD := 2.4
const MAX_STEPS := 500
var x := 0.0
var x_dot := 0.0
var theta := 0.0
var theta_dot := 0.0
var steps := 0
var KE: float = 0.0
var PE: float = 0.0
# Public Available API to reset the environment state after each episode
func _reset() -> PackedFloat32Array:
x = randf_range(-0.5, 0.5)
x_dot = randf_range(-0.2, 0.2)
theta = randf_range(-0.2, 0.2)
theta_dot = randf_range(-0.2, 0.2)
steps = 0
KE = 0.5 * (MASS_CART + MASS_POLE) * pow(x_dot, 2) + 0.5 * pow(theta_dot, 2)
PE = GRAVITY * MASS_POLE * POLE_HALF_LENGTH * 2 * cos(theta)
return _state()
func reset_to(p_x: float, p_x_dot: float, p_theta: float, p_theta_dot: float) -> PackedFloat32Array:
x = p_x
x_dot = p_x_dot
theta = p_theta
theta_dot = p_theta_dot
steps = 0
return _state()
# Public Available API for an action step in the environment
# Musr Return a Dictionary with atleast fields "state", "reward" and "done" for the internal backend to access the current state
func _step(action: int) -> Dictionary:
var force := FORCE_MAG if action == 1 else -FORCE_MAG
var cos_theta := cos(theta)
var sin_theta := sin(theta)
var temp := (force + POLE_MASS_LENGTH * theta_dot * theta_dot * sin_theta) / TOTAL_MASS
var theta_acc := (GRAVITY * sin_theta - cos_theta * temp) / \
(POLE_HALF_LENGTH * (4.0 / 3.0 - MASS_POLE * cos_theta * cos_theta / TOTAL_MASS))
var x_acc := temp - POLE_MASS_LENGTH * theta_acc * cos_theta / TOTAL_MASS
x += TAU * x_dot
x_dot += TAU * x_acc
theta += TAU * theta_dot
theta_dot += TAU * theta_acc
steps += 1
var done := absf(x) > X_THRESHOLD or absf(theta) > THETA_THRESHOLD or steps >= MAX_STEPS
var KE_1 = 0.5 * (MASS_CART + MASS_POLE) * pow(x_dot, 2) + 0.5 * pow(theta_dot, 2)
var PE_1 = GRAVITY * MASS_POLE * POLE_HALF_LENGTH * 2 * cos(theta)
var diff: float = absf((KE + PE) - (KE_1 + PE_1))/(KE + PE + 1e-8)
var reward := 1.0 - diff if not done or steps >= MAX_STEPS else 0.0
return {"state": _state(), "reward": reward, "done": done}
# Public Available API for setting the state dims for internal calculations
# Important!! in order to have the environment backend know the state size
func _get_state_dims() -> int: return 4
# Public Available API for setting the action dims for internal calculations
# Important !! in order to have the environment backend to take proper step based on model predictions
func _get_action_dims() -> int: return 2
func _state() -> PackedFloat32Array:
return PackedFloat32Array([x, x_dot, theta, theta_dot])
Step 2: Create and Train the Agent
extends Node2D
const PIXELS_PER_METER := 100.0
# Initialize the Environment and Model
@onready var env := CartPoleEnv.new()
@onready var ppo := PPO.new()
# Access GUI Elements
@onready var cart: Node2D = $Cart
@onready var pole: Node2D = $Pole
# Define the training parameters
@export var total_timesteps: int = 200000
@export var rollout_steps: int = 2048
@export var epochs_per_update: int = 10
@export var minibatch_size: int = 64
@export var clip_eps: float = 0.2
@export var gamma: float = 0.99
@export var gae_lambda: float = 0.95
@export var actor_lr: float = 0.0003
@export var critic_lr: float = 0.001
@export var print_loss: bool = true
@export var print_every: int = 1
var running := false
var current_position: Vector2
# Override the ready function to build the model
func _ready() -> void:
current_position = cart.global_position
if cart is RigidBody2D: cart.freeze = true
if pole is RigidBody2D: pole.freeze = true
# Layers are Defined via Array of Dictionary
# with fields
# "layer_id" [LINEAR_LAYER, ACTIVATION_LAYER]
# "out_dims" output dims of the layer
# "activation" [RELU, SIGMOID, SOFTMAX, LEAKYRELU, TANH, LOGSOFTMAX]
var actor_layers: Array = [
{"layer_id": FFN.LINEAR_LAYER, "out_dims": 32},
{"layer_id": FFN.ACTIVATION_LAYER, "activation": FFN.TANH},
{"layer_id": FFN.LINEAR_LAYER, "out_dims": 64},
{"layer_id": FFN.ACTIVATION_LAYER, "activation": FFN.TANH},
{"layer_id": FFN.LINEAR_LAYER, "out_dims": 2},
{"layer_id": FFN.ACTIVATION_LAYER, "activation": FFN.SOFTMAX},
]
var critic_layers: Array = [
{"layer_id": FFN.LINEAR_LAYER, "out_dims": 32},
{"layer_id": FFN.ACTIVATION_LAYER, "activation": FFN.TANH},
{"layer_id": FFN.LINEAR_LAYER, "out_dims": 64},
{"layer_id": FFN.ACTIVATION_LAYER, "activation": FFN.TANH},
{"layer_id": FFN.LINEAR_LAYER, "out_dims": 1},
]
# Build the model via the public API
# takes the actor_layers and critic_layers
# Note: the actor must output at softmax activation or log softmax activation as the action space must be a probability distribution while the critic must return a regression type output
print("Building PPO actor/critic...")
ppo.build(actor_layers, critic_layers)
# Set the environment via set_environment
ppo.set_environment(env)
func _input(event: InputEvent) -> void:
if event.is_action_pressed("train"):
train()
if event.is_action_pressed("predict"):
env.reset_to(0.0, 0.0, randf_range(-0.1, 0.1), 0.0)
running = true
if event.is_action_pressed("ui_accept"):
running = !running
func train() -> void:
print("Training...")
# Train API for training via the set parameters
ppo.train(total_timesteps, rollout_steps, epochs_per_update, minibatch_size, clip_eps, gamma, gae_lambda, actor_lr, critic_lr, print_loss, print_every)
print("Training finished")
# Run Prediction Model Once Trained
func _process(_delta: float) -> void:
if not running:
return
var state := env._state()
var action: int = ppo.get_action(state)
var result: Dictionary = env._step(action)
var s: PackedFloat32Array = result["state"]
cart.global_position.x = current_position.x + s[0] * PIXELS_PER_METER
pole.global_position.x = cart.global_position.x
pole.rotation = s[2]
Implementation Highlights

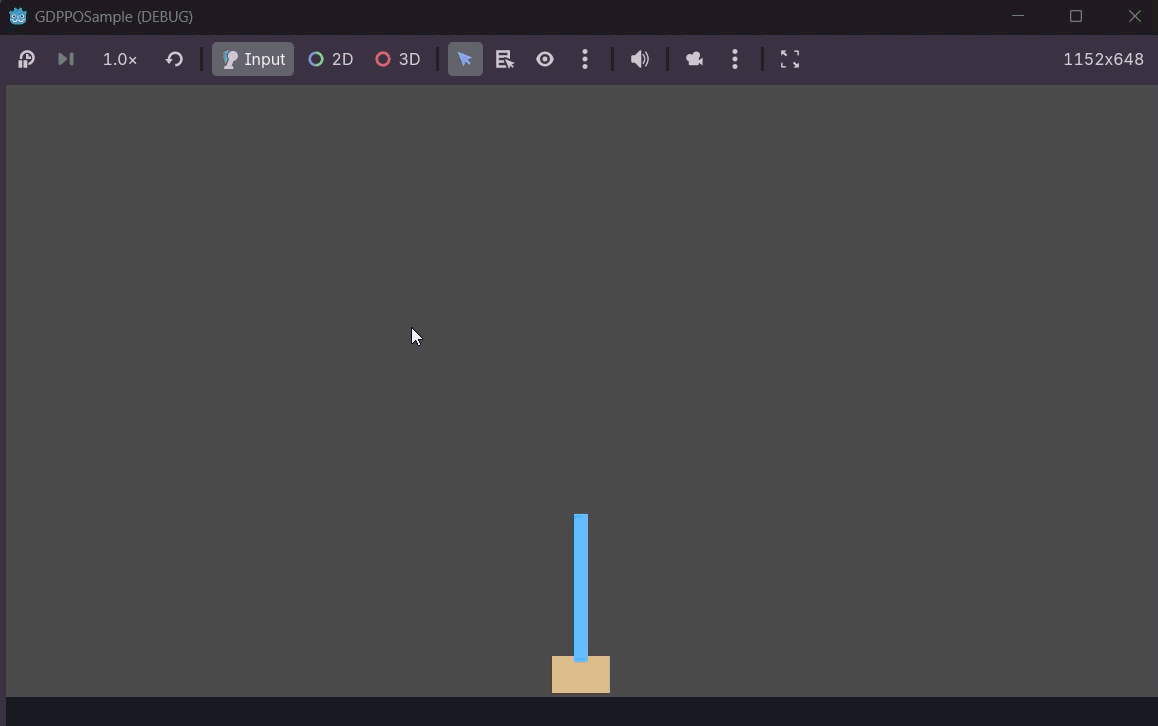

Without Training

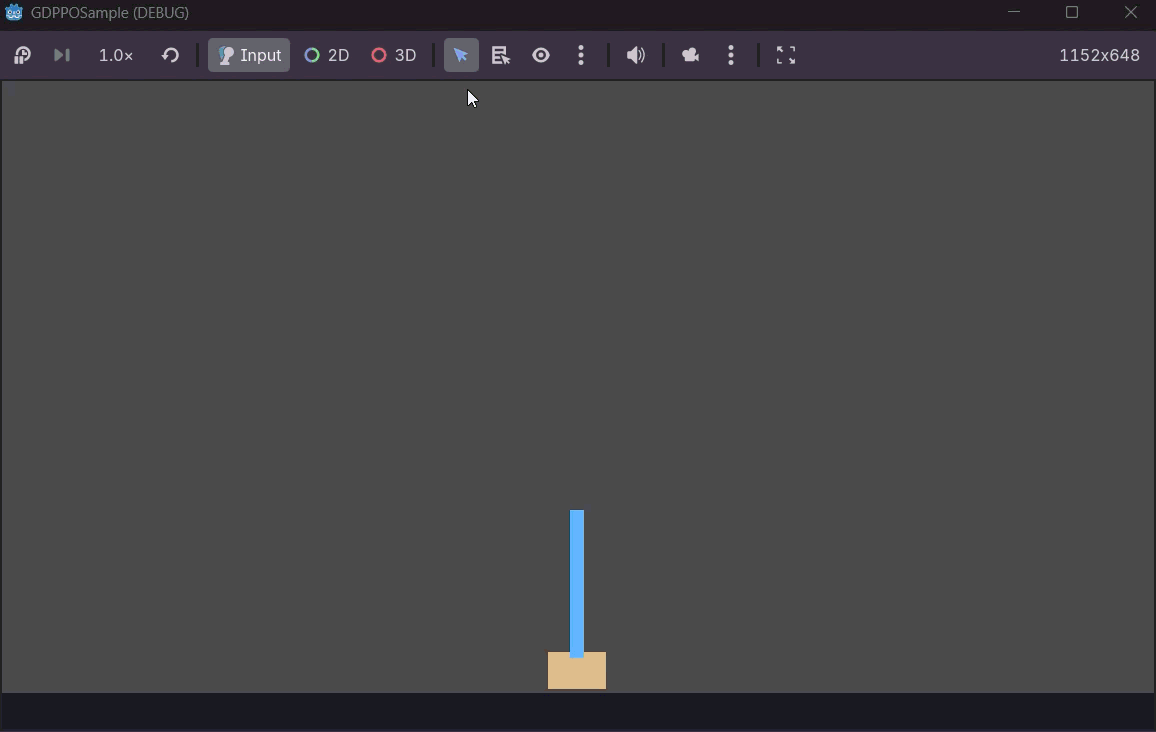

After Training for 200000 timesteps, each episode being 2048 time steps long
Key Design Decisions
- RefObject-based: PPO and PPOEnvironment inherit from RefObject for Godot's lifecycle management
- PackedFloat32Array: Used for state/action tensors (efficient C++ interop)
